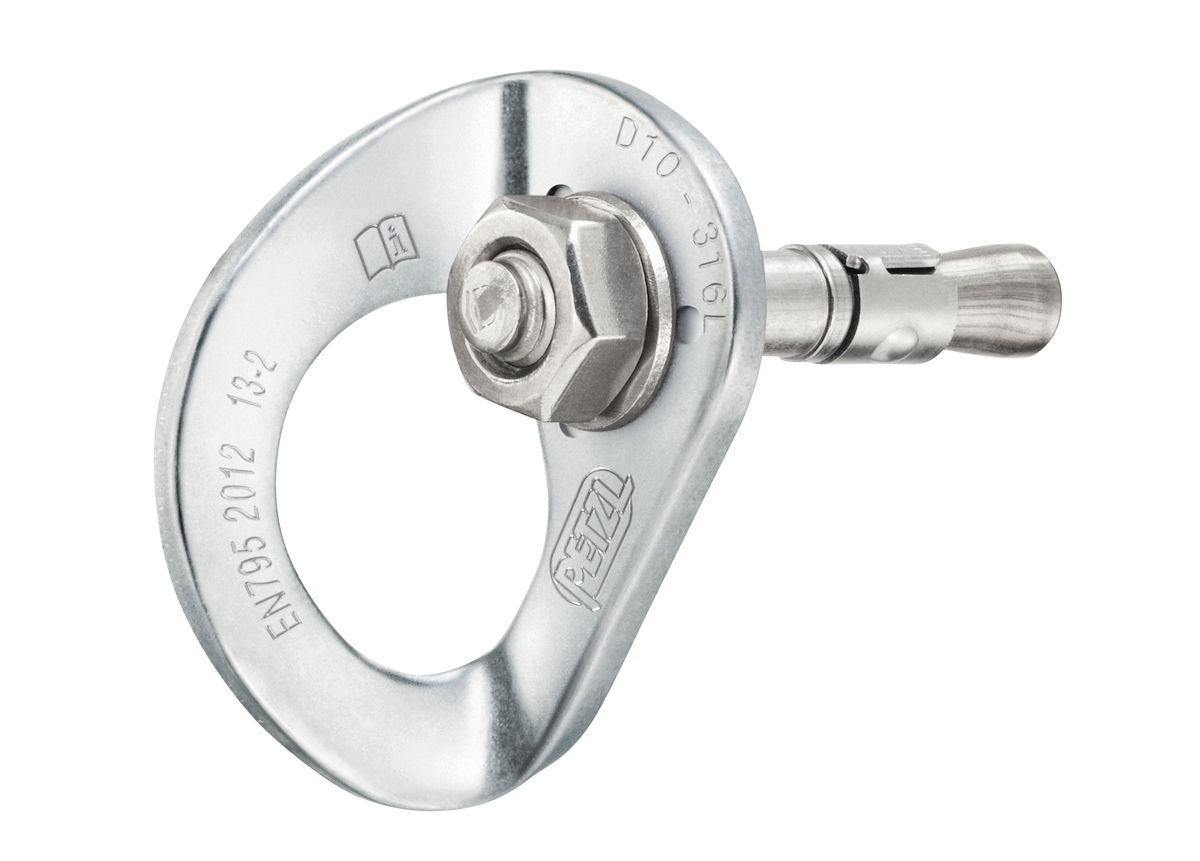

ანკერი ყურით 10 მმ. COEUR BOLT STEEL 10MM P36BA 10
12,00 ₾
Standard steel anchor for interior use or non-permanent installations
The COEUR BOLT STEEL is a standard steel anchor made up of a COEUR STEEL hanger, a bolt, and a nut. It is designed for interior use or non-permanent installations. It is available in 10 and 12 mm diameters.
188 საწყობშია
Description
- Economical choice for low-corrosion environments
- Assembly composed of a COEUR STEEL hanger, a bolt, and a nut
- Easy to clip:
– the wide, ergonomic connection point facilitates carabiner clipping
– the width of the attachment point allows installation of two carabiners at the same time - Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
- Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
- Available in two bolt sizes (10 or 12 mm)
- COEUR STEEL hangers, available separately:
– for 10 mm diameter bolt (P36AA 10)
– for 12 mm diameter bolt (P36AA 12)Note: Items sold in packs are not marked for individual resale.
Specifications
- Material(s): steel
- Certification(s): EN 959
References
| References | P36BA 10 | P36BA 12 |
|---|---|---|
| Diameter | 10 mm | 12 mm |
| Weight | 110 g | 135 g |
| Drilling diameter | 10 mm | 12 mm |
| Total bolt length | 85 mm | 105 mm |
| Shear strength in 50 MPa concrete | 23 kN | 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN | 18 kN |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
