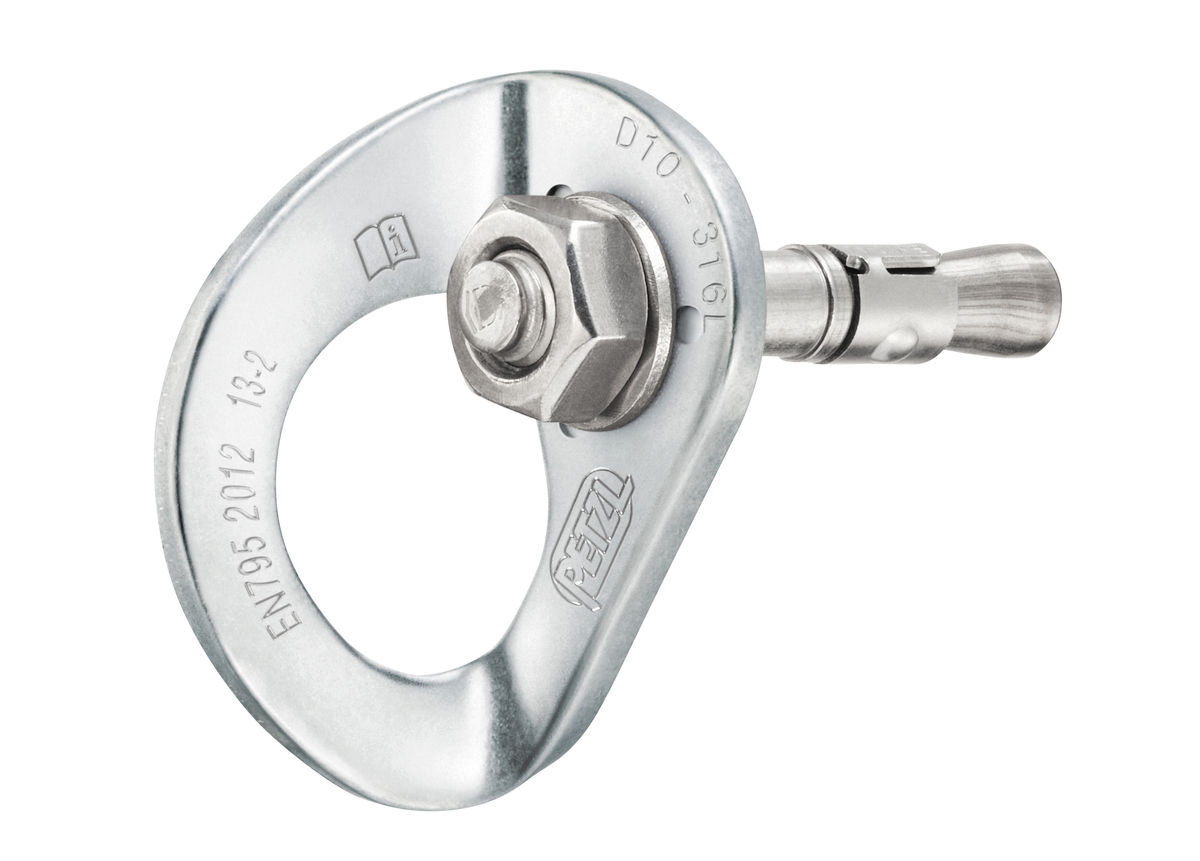

ანკერი ყურით 12 მმ COEUR BOLT STAINLESS 10 MM P36BS 12
30,00 ₾
Stainless steel anchor composed of a COEUR STAINLESS hanger, a bolt, and a nut, and is designed for typical exterior use. It is available in 10 and 12 mm diameters.
70 საწყობშია
აღწერა
Description
- Complete and durable assembly:
– Includes a COEUR STAINLESS hanger, nut, and bolt
– 316L stainless steel offers excellent resistance to corrosion in typical exterior environments
– Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use - Easy to clip:

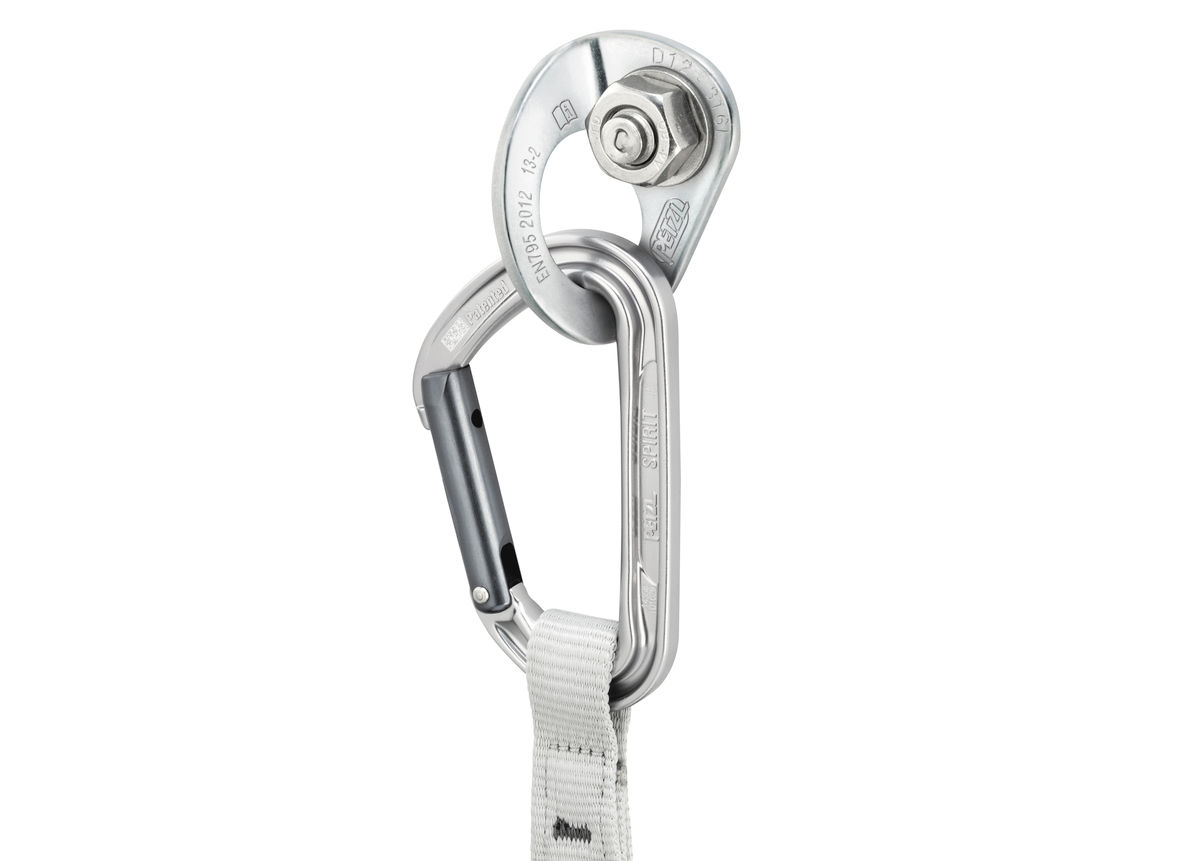

– Wide, ergonomic hanger opening makes it easier to clip a carabiner
– The width of the attachment point allows installation of two carabiners at the same time - Reduces wear on carabiners: the thickness of the hanger and the rounded edges of the connection point reduce wear on carabiners
- Available in two bolt sizes (10 or 12 mm)Note: Items sold in packs are not marked for individual resale.
Specifications
- Material(s): 316L stainless steel
- Certification(s): EN 959
References
| References | P36BS 10 | P36BS 12 |
|---|---|---|
| Diameter | 10 mm | 12 mm |
| Weight | 110 g | 135 g |
| Drilling diameter | 10 mm | 12 mm |
| Total bolt length | 70 mm | 85 mm |
| Shear strength in 50 MPa concrete | 25 kN | 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN | 18 kN |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
